Twin Screw Barrel are the large cylindrical elements with highly accurate and precise threads on their surfaces. These are widely used in plastic industries to mix raw materials used for the manufacturing of products like pipes, sheets and foam boards.
The Profimach deep hole Drilling-Boring-Honing machines have features to allow
the precision manufacturing of barrels and twin-screws barrels.
The solid bed, the precision roller guideways used on the axis and the big system for coolant and chips filtering allow the best performance and surface finishing of these machines. The features offered by the possibility to lap or hone on the same machine allow the finishing of barrels by one set up only.
|Working capacity||Drilling hole diameter range||Φ30~Φ80mm|
|Boring hole diameter range||Φ40~Φ200mm|
|Honing hole diameter range||Φ32~Φ200mm|
|Trepaning hle diameter range||Φ75~Φ200mm|
|Workpiece OD range||Φ100~Φ500mm|
|Twin hole Max. Hole distance.||100mm|
|Machine character||Z1 Axis(Honing)||Repeat speed||1~25m/min|
|Z2 axis(BTAdrilling)||Rapid speed||1m/min|
|Infeed speed range||5~500mm/min|
|Theoretical maximum thrust||14000kg|
|Z3 axis (Honing head expanding )||Motor torque||7Nm|
|Z4 axis||Rapid speed||3m/min|
|(Oil pressure head servo motion )||Motor torque||25Nm|
|X1/X2 Axis||Rapid speed||3m/min|
|(centerr rest horizontal motion )||Motor torque||25Nm|
|Drill bar box||Speed range||61-800r/min|
|Honing box||Rotating speed||20~250r/min|
|Other||Height of spindle center to the slide guide surface||550mm|
|Slide guide rail span||600mm|
|Machine floor space||17.5m×3.5m|
|Machine total power||110KW|
|Coolant system||Drill, boring, trepaning||Max. pressure||2.5MPa|

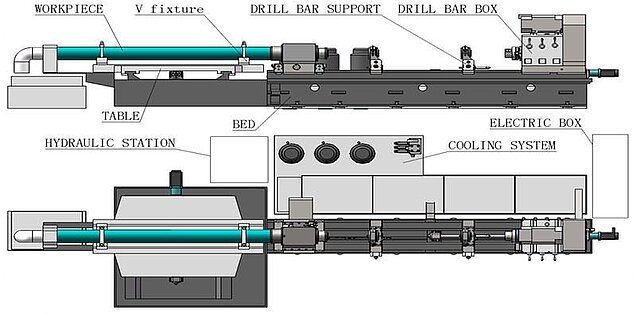

Our twin barrel drilling-boring-lapping machine has been expressly designed for the complete machining of twin screw barrels. The machine feed movements slide on precision roller bearings which provide high precision and long machine lifetime. The CNC controls all axes and facilitates the programming of billet drilling, push and pull boring and lapping operations. Main features of this special boring machine is the workpiece setup on two carriages with controlled cross feed. After finishing the first hole the machine automatically translate the barrel to machine the second one. This machine is available in different versions up to 8000 mm length and 800 mm workpiece diameter.
